& does relevant recommendations: 【 non-metallic fabric compensator, metal compensator, stainless steel corrugated compensator 】 is gongyi city full state pipeline equipment co., LTD. The main business of our company has been made as a special equipment manufacturing license and ISO quality management system certification of qualified companies, the company management concept: the factory in order to "customer needs is our goal" principle, wholeheartedly for the customers with excellent products, reasonable prices, fast delivery cycle, professional technical support and perfect after-sales service. In the future, full state is full of confidence and hope, was determined in a more high quality brand and good service, sincere cooperation with customers at home and abroad, to do the northern area of the thermal compensation smoke duct equipment industry's first brand.



Draw the horizontal corrugated compensator is introduced

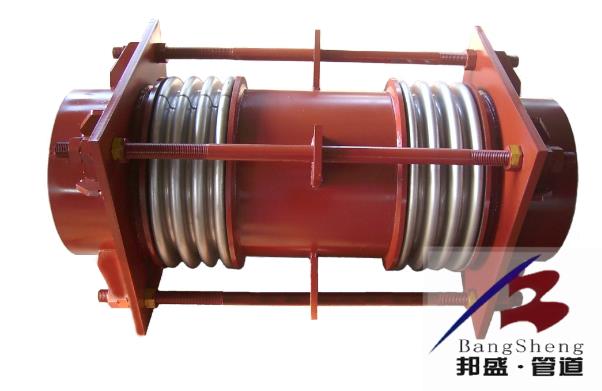

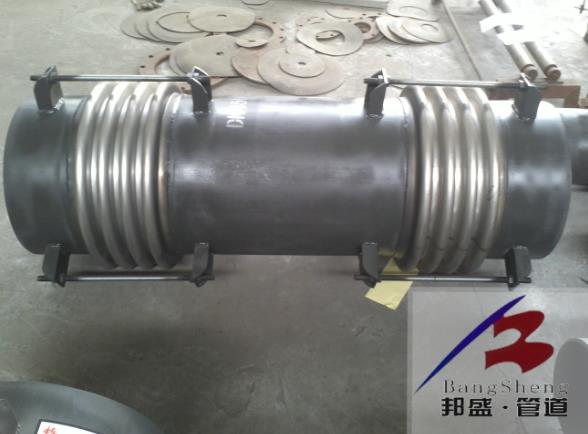

Small rod lateral corrugated compensator are also called small lever type transverse expansion joint, tie rod compensator, in addition to the bending section of the horizontal displacement and angular displacement can be compensation, at the same time, it can compensate the axial displacement. To compensate lateral displacement and angular displacement, bending pipe at the same time, it can compensate the axial displacement.
Small rod lateral corrugated compensator consists of two Duan Bowen tube, take over and middle small bar with a limit nut and other parts, material 1 cr18ni9ti or SUS304 material manufacturing, adopts a multilayer hydraulic molding technology, can compensate the axial, angular, lateral displacement and the parties of the synthesis. Small bar cannot bear inner pressure thrust. For example: 0.6 XLB500FB - 1500 said nominal diameter is 500 mm, pressure is 0.6 Mpa, length of 1500 mm, stainless ?
