& does relevant recommendations: direct double corrugated compensator 】 【 double corrugated compensator is gongyi city full state pipeline equipment co., LTD. The main business of our company has been made as a special equipment manufacturing license and ISO quality management system certification of qualified companies, the company management concept: the factory in order to "customer needs is our goal" principle, wholeheartedly for the customers with excellent products, reasonable prices, fast delivery cycle, professional technical support and perfect after-sales service. In the future, full state is full of confidence and hope, was determined in a more high quality brand and good service, sincere cooperation with customers at home and abroad, to do the northern area of the thermal compensation smoke duct equipment industry's first brand.

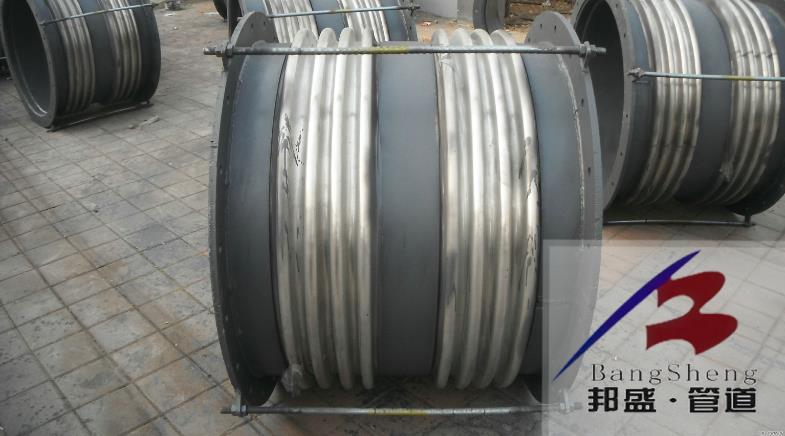

The purpose of double corrugated compensator
Axial double corrugated compensator (FS) for axial large amount of compensation, compensation and economic is its characteristic.

The connection mode of double corrugated compensator
1, 2, to take over the connection flange connection
Product axial offsets: 30 mm - 450 mm

Model example of double corrugated compensator


The use of double corrugated compensator
Double corrugated compensator, which can meet the pipeline axial compensation, compensation amount is large, more economy is its characteristic. Flange connection press machine standard JB81-59 supply, can also according to user requirements in accordance with the national standard, the standard or other standard delivery.

Double corrugated compensator for fixed bearing force
Pressure thrust: Fp = 100 p. a. (N)
The axial elastic: Fx = Kx, X (N)
Type: P: maximum working pressure or the highest test pressure of MPa
A: effective area (check sample) cm2
Kx: compensator axial stiffness N/mm
X: compensator using the axial offsets the mm
