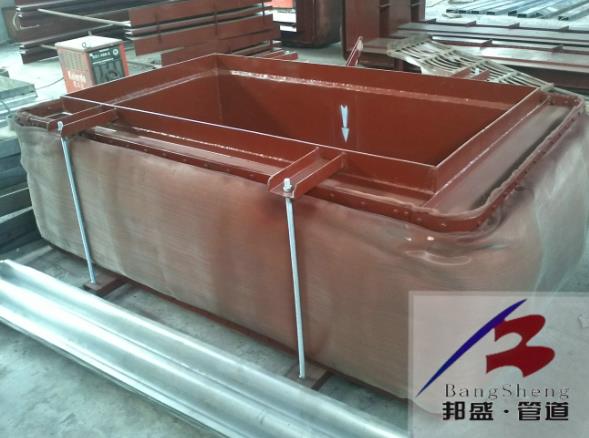

Non-metallic flexible high temperature compensator is introduced
Non-metallic flexible compensator is mainly composed of high temperature glass fiber cloth and glass fiber coated with rubber cloth or fluorine plastic sheeting for processed into the main ring, combined with metal stents, flange, guide plate, insulation, dust bag and so on together.
Non-metallic flexible compensator is mainly to solve high temperature industrial smoke caused by thermal expansion problems in the process of transmission, can be installed in smaller axial distance provided under the direction of the larger more compensation amount, at the same time can effectively eliminate the install the cumulative error of the whole system.
High temperature non-metallic flexible compensator can effectively reduce boiler, fan, long distance pipeline system, such as noise and vibration, can simplify the piping design of the whole system. Compared with metal compensator ?
High temperature non-metallic flexible compensator installation instructions
1) wear sleeve (2) dustproof sleeve (3) slip body (4) install bolts (5) flat steel flange
1, the compensator installation shall be carried out in the cold, installation error:
A, smoke duct axis of two interface flange centerline should be kept in the same line, coaxial degree of error of plus or minus 5 mm;
B, torsion Angle deviation is not more than 10 °;
C, up and down, or about 0.1 ° Angle deviation plus or minus;
D, compensator expansion joints installation length shall be the L + / - 5 mm.
2, compensator expansion section compensator effective cross section > 1 m2, fission factory, welding assembly at the scene of the user;
3, after the completion of the compensator installed, should be down bolt installation.
4, prevent weight impact and metal acute prick slip ring.
The purpose of the non-metallic flexible high temperature compensator for example
The factory class
Thermal power plant boiler, gas turbine exhaust system
Petroleum chemical industry, boilers, industrial furnace exhaust system
Smoke desulphurization device: wet method, dry method of ventilation
Steel mills: the blast furnace, converter, burning furnace exhaust system
Smelters: combustion furnace exhaust system, etc
Waste treatment plant, city garbage, plastic incinerator gas sealing system
Nuclear power station, the ventilation system
Industry: cement kiln system, dust, dust processing device
Device class
Dust collector: all entrances and exits of the equipment
