& does relevant recommendations: 【 duct compensator, rummaged through rubber joint, heat pipe expansion 】 is gongyi city full state pipeline equipment co., LTD. The main business of our company has been made as a special equipment manufacturing license and ISO quality management system certification of qualified companies, the company management concept: the factory in order to "customer needs is our goal" principle, wholeheartedly for the customers with excellent products, reasonable prices, fast delivery cycle, professional technical support and perfect after-sales service. In the future, full state is full of confidence and hope, was determined in a more high quality brand and good service, sincere cooperation with customers at home and abroad, to do the northern area of the thermal compensation smoke duct equipment industry's first brand.
Eight big ripple plate box can limit adjustable compensator is introduced
Compensator is also called the expansion joint, or the slip joint. By work constitute the main body of the corrugated pipe (a kind of elastic element) and the end of tubes, stents, flange, pipe and other accessories.
Belongs to a kind of compensation components. Use its work subject bellows telescopic deformation effectively, to absorb piping, pipe, container, etc is produced by the reason of heat bilges cold shrink and the size of the change, or compensation pipeline, pipe, container, etc. The axial, lateral and angular displacement. Can also be used for noise reduction vibration reduction. Widely used in modern industry.
Compensator is also known as expansion, expansion joint, corrugated compensator. Compensator is divided into: corrugated compensator, sleeve compensator, rotating compensator, square compensator ? fall into several categories, nature
1. The compensation Angle to the absorption pipeline axial, lateral, thermal deformation.
2. Corrugated compensator expansion amount, valve pipe installation and removal.
3. The vibration absorption equipment, reduce the influence of equipment vibration on pipeline.
4. Absorb the earthquake, subsidence deformation of pipeline.

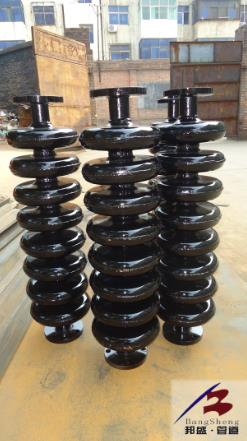

Eight big ripple plate box can limit adjustable compensator product description
Plate box can limit adjustable compensator is one of an important part of a pipe installation, the compensation apparatus has small volume, convenient installation, cover an area of an area small, reduce the labor intensity, save work, manpower, material, strong practicability, etc. Expansion amount in 60-120 - mm, no seepage and no leakage, no filler, can good scalability, safe and reliable, and can save maintenance workload, installed at the same time is not well set expansion force, reduce the project cost, the compensator is novel and reasonable structure, no wearing parts, small volume, light weight, installation convenient transportation, is the ideal product pipeline installation.
Eight big ripple plate box can limit adjustable compensator design and construction guidelines
1, this product USES pressure below 1.6 MPa, use medium: water, steam, gas, oil, temperature and pipe are the same, high-rise buildings use the best;
2, this product is 0.8 1.2 T, maximum thrust using fatigue life 6500 times;
3, this product can be widely used in aerial pipeline, gutter pipeline, directly buried pipeline;
4, compensator is turning to a facility;
5, this product only for axial installation (straight pipe);
6, this product is used for cooking line need not build by laying bricks or stones compensator well;
7, when installation is strictly forbidden on the telescopic box of compensator ignition;
8, this product is the second wave to 25 mm to 30 mm, four wave to pull a 50 mm - 60 mm;
9, practice has proved that in high temperature water heating pipe network, more than 60 m should set a second wave expansion, 120 meters above should establish four wave expansion pipe, steam pipe should be installed according to the design standard of 30 m wave expansion.
