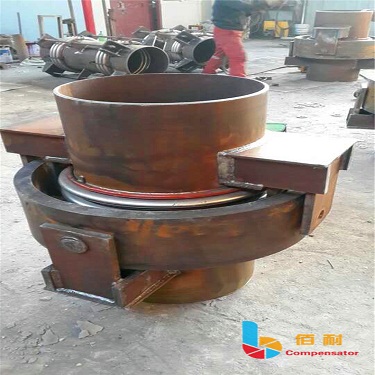

There are many kinds of single hinge ripple compensators. Today, Hongsheng takes you a brief look at JWJ single universal hinge ripple compensator and JJL single hinge ripple compensator. The single hinge bellows compensator, also known as the single hinge expansion joint, consists of bellows, end tubes, brackets, flanges and catheters which constitute the main body of its work. The utility model belongs to a compensation element. The effective expansion deformation of bellows is used to absorb the size changes of pipelines, conduits and containers caused by thermal expansion and cold contraction, or to compensate the axial, transverse and angular displacements of pipelines, conduits and containers. It can also be used for noise reduction and vibration reduction. It is widely used in modern industry. JWJ single universal hinge type corrugated compensator is also called expansion joint. The compensator/expansion joint has a universal ring and two vertical hinge structures around the universal ring, so it can absorb the angular displacement of any plane. Usually when absorbing displacement, two or three combinations should be used. Notes for installation and use: 1. The small tie rod on the compensator is only used for transportation, installation and "cold tightening". After installation, it must be removed. 2. When the angular deformation of compensator is large or the working pressure of the system is high, the recommended product should be "cold-tightened" during installation, usually 50% or 100%. The advantages of cold tightening are mainly to improve the working stability of expansion joints and pipelines. JJL single hinge type bellows compensator/expansion joint consists of nozzle, bellows and a pair of hinges connected with nozzle. It can only absorb the angular displacement of a single plane. Two or three angular expansion joints should be combined to absorb displacement. The hinge of expansion joint has the ability to withstand internal pressure thrust. Compensator is mainly used to ensure the safe operation of pipeline, which has the following functions: 1. Single hinge corrugated compensator compensates the thermal deformation of absorption pipeline in axial, transverse and angular directions. 2. The expansion of the corrugated compensator facilitates the installation and disassembly of the valve pipeline. 3. The single hinge corrugated compensator absorbs the vibration of the equipment and reduces the influence of the vibration of the equipment on the pipeline. 4. Absorbing the deformation of pipeline caused by earthquake and subsidence. Over the past few years, our Gongyi Hongsheng Pipeline Equipment Co., Ltd. has continuously developed new products, improved product quality, done a lot of research and experiments, put forward a new product structure, greatly improved the performance of the products, and won the praise of the vast number of users. If special specifications of products are needed, they can be designed and manufactured according to user's requirements. And sincerely hope that new and old customers, design units recommend the use of our company's products.
