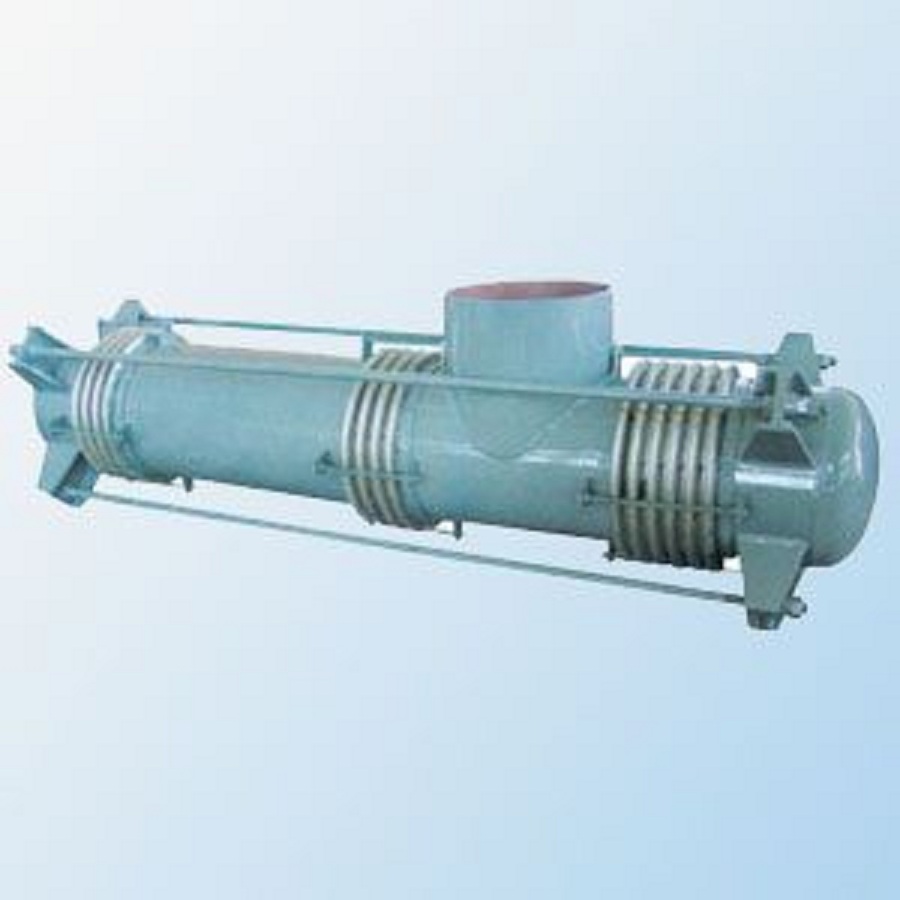

Curved pipe pressure balancing compensator, also known as expansion joint and expansion joint, is installed in the corner of the pipeline or in the space pipeline connected by the equipment. The curved pipe pressure balance corrugated compensator can compensate the axial and lateral displacement without generating internal pressure thrust on the pipeline system or other equipment. It is installed on the pipeline at the bend of the pipeline or on the pipeline in the space connected with the equipment. It can rapidly attenuate the system pressure wave vibration caused by starting and stopping, eliminate the water turbine and absorb vibration. Noise reduction to ensure safe operation of equipment. There are two working bellows at the front (channel end) of the curved pipe pressure balancing bellows compensator, which can absorb the transverse displacement from the elbow section, and a balanced bellows at the rear (balance end) which can absorb the axial displacement from the straight pipe. When the bending pipe produces and transversely displaces, the spherical nut on the large pull rod rotates around the spherical washer. At the same time, the large tie rod bears internal pressure thrust. The two bellows at the channel end of the compensator can compensate the transverse displacement of the bending section, and the Balanced Bellows at the balance end can compensate the axial displacement of the straight section. Curved pipe pressure balancing ripple compensator is suitable for petrochemical, iron and steel, power, non-ferrous metals and other departments. Balanced ripple compensator is often used in pumps, compressors, steam turbines and other load-sensitive pipeline systems. Notices for installation and use of curved pipe pressure balance corrugated compensator: 1. Curved pipe pressure balancing bellows compensator (expansion joint) is generally used in overhead straight pipelines and installed horizontally. 2. After installation of the pressure balance bellows compensator (expansion joint), all the small tie rods shall be removed. 3. In order to reduce the elastic reaction of bellows expansion joints to the support, the bellows expansion joints can be pre-tensioned or pre-pressed before installation (by adjusting the small tie rods on the bellows expansion joints). Over the past few years, our Gongyi Hongsheng Pipeline Equipment Co., Ltd. has continuously developed new products, improved product quality, done a lot of research and experiments, put forward a new product structure, greatly improved the performance of the products, and won the praise of the vast number of users. If special specifications of products are needed, they can be designed and manufactured according to user's requirements. And sincerely hope that new and old customers, design units recommend the use of our company's products.
