& does relevant recommendations: rubber compensator, duct rubber compensator is gongyi city full state pipeline equipment co., LTD. The main business of our company has been made as a special equipment manufacturing license and ISO quality management system certification of qualified companies, the company management concept: the factory in order to "customer needs is our goal" principle, wholeheartedly for the customers with excellent products, reasonable prices, fast delivery cycle, professional technical support and perfect after-sales service. In the future, full state is full of confidence and hope, was determined in a more high quality brand and good service, sincere cooperation with customers at home and abroad, to do the northern area of the thermal compensation smoke duct equipment industry's first brand.
Rubber compensator is introduced

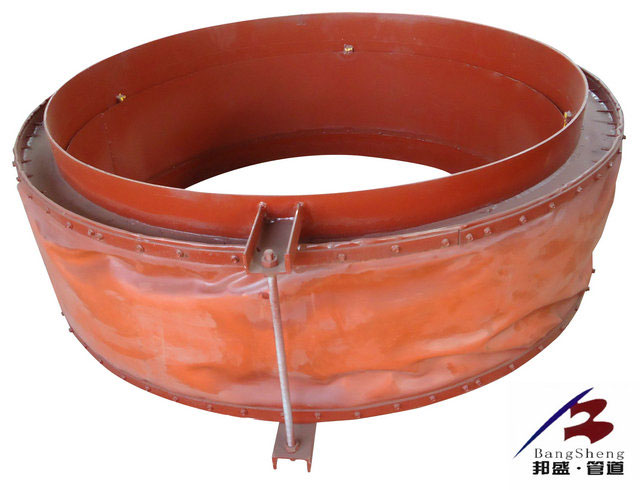

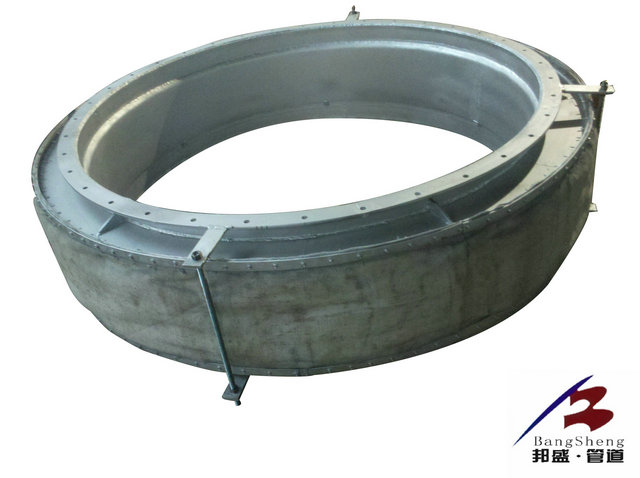

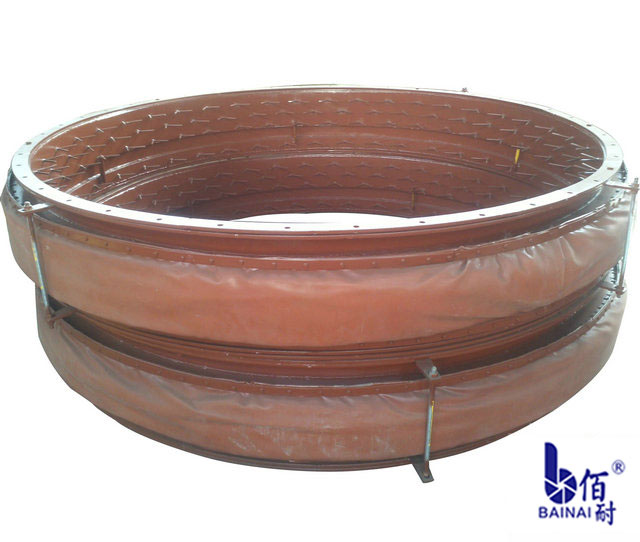

Large amount of compensation fabric compensator, not of metal
Compensator is also called the expansion joint, or the slip joint. By work constitute the main body of the corrugated pipe (a kind of elastic element) and the end of tubes, stents, flange, pipe and other accessories.
Belongs to a kind of compensation components. Use its work subject bellows telescopic deformation effectively, to absorb piping, pipe, container, etc is produced by the reason of heat bilges cold shrink and the size of the change, or compensation pipeline, pipe, container, etc. The axial, lateral and angular displacement. Can also be used for noise reduction vibration reduction. Widely used in modern industry.
The role of rubber compensator
Compensator is also known as expansion, expansion joint, corrugated compensator. Compensator is divided into: corrugated compensator, sleeve compensator, rotating compensator, square several types, such as natural compensator with corrugated compensator is relatively common, compensator is mainly to ensure the safe operation of the pipeline, and has the following functions:
1. The compensation Angle to the absorption pipeline axial, lateral, thermal deformation.
2. Corrugated compensator expansion amount, valve pipe installation and removal.
3. The vibration absorption equipment, reduce the influence of equipment vibration on pipeline.
4. Absorb the earthquake, subsidence deformation of pipeline.
Rubber compensator features of the product
1, rubber and fiber fabric has good displacement (change) reducing repeatedly, can provide large multidimensional direction in smaller size compensation, can eliminate the multidirectional errors caused by all kinds of piping connection.
2, rubber and fiber fabric has excellent acoustical isolation function, can effectively reduce and eliminate boiler, fan system products such as the transmission of sound and vibration.
3, rubber and fiber woven unable to transfer loss, reduced the design process, without adding other auxiliary facilities.
4, rubber and fiber woven and insulation material with high heat resistance and corrosion resistance, never rust, reduce maintenance costs.
5, rubber and fiber fabric has excellent air tightness and flexibility, can guarantee the transmission medium ? without leakage
The characteristics of the rubber compensator
1. The vibration reduction effect is good;
2. The sealing is good, use big flanging, no gasket seal, installed directly, saving cost;
3. Long service life.
The installation of rubber compensator
1 selected by the user in the design, installation, length, when placing order, not indicated by the supply of L = 350 mm.
In the table 2, the weight calculated by general installation length L = 350 mm.
3, joint with a brace, brace before installation should keep not to take off, after waiting for bolt tightening it all out, to ensure that installation is reasonable, the physical and mechanical properties make it the real impact.
Rubber compensator application range
1, 2, 3 cement plant, steel mills, smelting plant boiler plant, incinerator, 4, 5 air conditioning air supply system, thermal power plant and nuclear power plants 6 glass and mineral wool industry, 7 petrochemical enterprises, 8 air and gas cleaning plant, 9 air blower factory.
The technical performance indicators of rubber compensator
Rubber compensator connection size
The installation of rubber compensator is briefly explained
1 selected by the user in the design, installation, length, when placing order, not indicated by the supply of L = 350 mm.
In the table 2, the weight calculated by general installation length L = 350 mm.
3, joint with a brace, brace before installation should keep not to take off, after waiting for bolt tightening it all out, to ensure that installation is reasonable, the physical and mechanical properties make it the real impact.
4, various specifications and installation size tolerance should be consistent with the table below:
